Automatic Online pH Controller for pH & ORP

FOB Reference Price:Get Latest Price
$390.00 - $1,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
A&E
Model Number:
Wall-Mounted/ Embedded Series
pH Range:
-2.00~16.00pH
Resolution / Accuracy:
0.01pH / ±0.01pH
ORP Range:
-2000~2000mV
ORP Accuracy:
±1mV
Temperature Range:
-9.9~130.0°C
Temperature Accuracy:
±0.5°C
Control hysteresis band:
0.01~2.00pH / 1~200mV
Operation Temperature:
-10~50°C (14~122°F)
Operation Humidity:
10~95%
Size / Weight:
100x108x150mm/900g
Supply Ability
Supply Ability:
100 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Standard Export Package
Port
Guangzhou/Shanghai

Automatic Online pH Controller for pH & ORP

Product Description

Feature:

* Application : For monitoring of Industrial Process, Waste water measurements, Pharmaceutical, Chemical and Food & Beverage industries.

* Panel or Wall mounts Enclosures, NEMA4X, IP65 waterproof, dust proof.

* Provide precise measurement at industrial site or water treatment process.

* Symmetric signal output inte rface , preventing electromagnetic interference.

* Scaleable isolated output: 0/4~20 mA.

* Two level password protections prevent unauthorized tampering of setting.

* Large LCD, with orange backlit.

* T wo separate mechanical relays for high and low (HH/HL/LL) set points or delay time.

* Separately adjustable high and low set-point hysteresis (dead bands) prevent chattering of relays around the set point.

* The third mechanical relays for electrode self-cleaning or alarm.



Technical Specifications:



Model

AE-PH8000

AE-PH8300

AE-PH8500

pH Range

-2.00~16.00pH

-2.00~16.00pH

-2.00~16.00pH

Resolution / Accuracy

0.01pH / ±0.01pH

0.01pH / ±0.01pH

0.01pH / ±0.01pH

pH Standard Buffer

USA / NIST

USA / NIST

USA / NIST

pH Calibration

1 or 2 point

1 or 2 point

1 or 2 point

ORP Range

-2000~2000mV

-2000~2000mV

-2000~2000mV

Resolution

1mV

1mV

1mV

Accuracy

±1mV

±1mV

±1mV

Temperature Range

-9.9~130.0°C

-9.9~130.0°C

-9.9~130.0°C

Resolution / Accuracy

0.1°C / ±0.5°C

0.1°C / ±0.5°C

0.1°C / ±0.5°C

Temperature Sensor

PT1000

PT1000

PT1000

Temperature

Compensation

ATC Automatic / MTC Manual

ATC Automatic / MTC Manual

ATC Automatic / MTC Manual

pH Electrode

Standard pH or

Antimony electrode

Standard pH or

Antimony electrode

Standard pH or

Antimony electrode

Signal Input

Symmetrical / Asymmetrical

Symmetrical / Asymmetrical

Symmetrical / Asymmetrical

Signal Output / Load

0 / 4~20mA / 600Ω

0 / 4~20mA / 600Ω

0 / 4~20mA / 600Ω

Output Interface

---

RS-485

RS-485

Relay Specification

2 SPST / 250V 1A

3 SPST / 250V 1A

3 SPST / 250V 1A

Frequency of Cleaning Time

---

1~999hours / 1~999sec

1~999hours / 1~999sec

Control hysteresis band

0.01~2.00pH / 1~200mV

0.01~2.00pH / 1~200mV

0.01~2.00pH / 1~200mV

EMC Standard

EN 50081-1 / EN50082-1

EN 50081-1 / EN50082-1

EN 50081-1 / EN50082-1

Operation Temperature

-10~50°C (14~122°F)

-10~50°C (14~122°F)

-10~50°C (14~122°F)

Operation Humidity

10~95%

10~95%

10~95%

Power Supply

220/110VAC

220/110VAC220/110VAC

Size / Weight

100x108x150mm/900g

100x108x150mm/900g

100x108x150mm/900g





Model

AE-PH8000

AE-PH8100

AE-PH8200

AE-PH8300

AE-PH8500

Type

Embedded PH

Embedded PH

Wall-Mounts PH

Embedded PH

Wall-Mounts PH

relay specifications

2 relays/250V,1A

3 replays/250V,1A

3 replays/250V,1A

3 replays/250V,1A

3 replays/250V,1A

Output interface

0/4-20mA Output

0/4-20mA Output

0/4-20mA Output

0/4-20mA/RS485 Output

0/4-20mA/RS485 Output



Product Showings:

online controller_online_
Related Products:

POCKET PH METERPORTABLE ORP METER.jpg



SuperSeptember

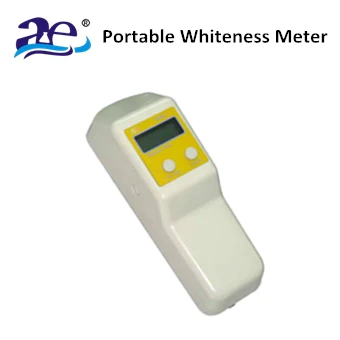

Portable Whiteness MeterPortable Turbidity Meter

Packaging & Shipping

0007.png 3_.web.jpg

FAQ

Q: How about the warranty for your products?
A: All of our products have one year warranty. During the guarantee period, if there are any problem with our instrument, we will help you to solve it by sending pictures, videos or free spare parts until things get fixed. After out of guarantee, we will also help you solve the problem, but not including send free spare parts to your country.

Q: Can you do OEM?
A: Yes, we can do OEM/ODM as you required.

Q: Can you offer the technical support, online or site training or other?
A: We will offer technical support like operating manual, operating videos to support or provided training material of the detailed products you are interested in. For some complex instruments, we can support you oversea training if you need, but cost will be afford by your side.

Q: May I have a free sample? I need test your quality first.
A: We are regret to tell you that we could not offer free sample to our customers, because the most of items are not low value product. But in order to support you, we can try to quote special offer for your trail order.
